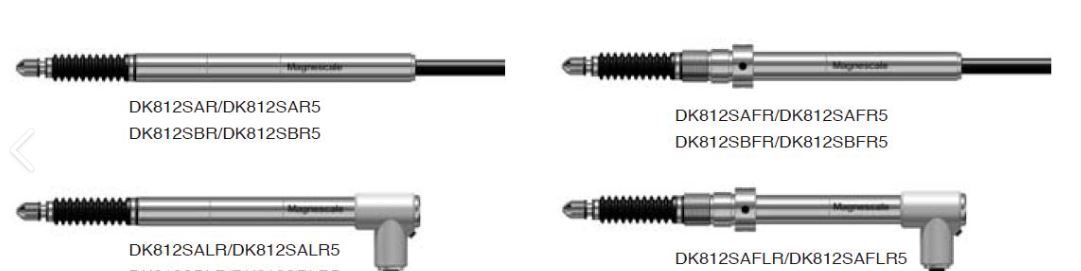

Magnescale索尼探规位移传感器DK812SBVR5青岛平山郭-158-54210565

仪器仪表类 Magnescale索尼探规位移传感器DK812SBVR5青岛平山郭-158-54210565

Magnescale索尼探规位移传感器DK812SBVR5青岛平山郭-158-54210565

货号: #DK812SBVR5

库存: 50

品牌:

¥5640.00 ¥1630.00

简介

Magnescale索尼探规位移传感器DK812SBVR5青岛平山郭-158-54210565

分类: 仪器仪表类,

产品详情

Magnescale索尼探规位移传感器DK812SBVR5青岛平山郭-158-54210565

Specifications

Specifications
1 Values in parentheses show those of type B. 2 Excluding the interpolation box and connector 3 When Φ4 mm tube is used in the right angle type 4 Excluding interpolation box and connector *5 There are some differences in the shape and dimensions from the previous DK800 series models. Magnescale reserves the right to change product specifications without prior notice.
Model	High resolution model	General purpose resolution model
Model	DK805SAR, DK805SALR, DK805SAFR, DK805SAFLR, DK805SBR, DK805SBLR, DK805SBFR, DK805SBFLR	DK805SAR5, DK805SALR5, DK805SAFR5, DK805SAFLR5, DK805SBR5, DK805SBLR5, DK805SBFR5, DK805SBFLR5
Measuring range	5 mm
Maximum resolution	0.1 µm	0.5 µm
Accuracy (at 20 °C)	1 µm p-p	1.5 µm p-p
Measuring force (at 20 °C)	Upward: 0.35 ±0.25 N
	Horizontal: 0.40 ±0.25 N
	Downward: 0.45 ±0.25 N
Operating temperature	0 to +50 °C (no condensation)
Storage temperature	-20 to +60 °C (90 %RH or less)
Maximum response speed *1	80 m/min (42 m/min)	250 m/min (100 m/min)
Spindle driving	Spring push (All model) Air drive by vacuum suction is possible (DK805SLR)
Reference point response speed	Same as maximum response speed noted above
Reference point	at 1 mm ±0.5 mm position of spindle movement
Protection grade *2	Straight type: IP67 / Right angle type: IP64 (IP67*3 )
Vibration resistance	100 m/s2 (20 to 2,000 Hz)
Impact resistance	1,000 m/s2 (11 ms)
Power supply	DC 5 V ±5 %
Power consumption	1 W
Output	A/B/reference point, voltage-differential line driver output (conforming to EIA-422)
Mass*4	Approx. 30 g
Feeler	Carbide ball tip, mounting screw M2.5	Steel ball tip, mounting screw M2.5
Output cable length	2.5 m
Accessories	Instruction manual, +P M4 x 5 screws (2 pc), tightening nut, clamp spanner, wave washer, mounting pins 1 each (for DK8*SF only), hose elbow (for DK8SL* only), spanner, supplement
