ORIENTAL MOTOR东方马达旋转执行器DGM85R-AZMK青岛平山郭-158-54210565

工控传动 ORIENTAL MOTOR东方马达旋转执行器DGM85R-AZMK青岛平山郭-158-54210565

ORIENTAL MOTOR东方马达旋转执行器DGM85R-AZMK青岛平山郭-158-54210565

货号: #DGM85R-AZMK

库存: 28

品牌:

¥24100.00 ¥11900.00

简介

ORIENTAL MOTOR东方马达旋转执行器DGM85R-AZMK青岛平山郭-158-54210565

分类: 工控传动,

产品详情

ORIENTAL MOTOR东方马达旋转执行器DGM85R-AZMK青岛平山郭-158-54210565

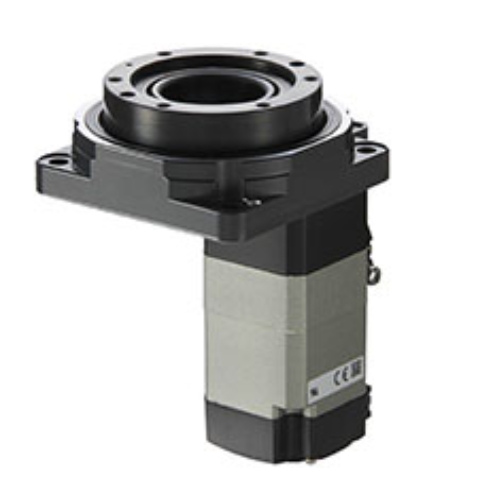

The DGII Series uses a highly rigid hollow rotary table with an absolute mechanical encoder AZ series closed loop motor allowing for highly accurate positioning of larger inertia loads.

Large-Diameter, Hollow Output Table
Direct Coupling
Accurate Positioning
Shorter Positioning Time
Easy Home Operation

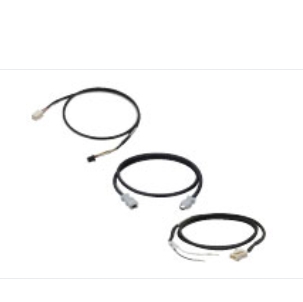

*Connection Cables required (sold separately)

Available to Ship¹	Up to 5 pcs as of 6:30am EST Estimated Ship: 06/30/2025 This Item cannot be cancelled or returned.
Return Policy	This product cannot be cancelled or returned once the order has been processed.
Frame Size	3.35 in
Shaft	Single
Gear Ratio (X:1)	18 :1
Motor Location	Vertical Mount
Cable Direction	Down
Electromagnetic Brake	Equipped
Output Table Supporting Bearing	Cross-Roller Bearing
Permissible Torque	39.80 lb-in
Inertia	143.82 oz-in²
Permissible Speed (r/min)	1200º/seconds (200 r/min)
Max. Holding Torque	23.90 lb-in
Resolution	36000 P/R (0.01º)
