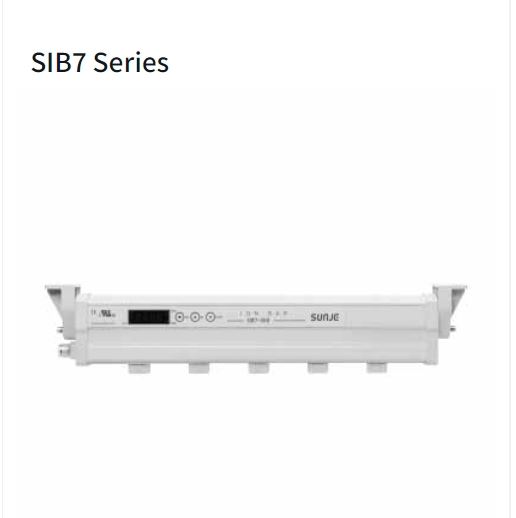

SUNJE禅才静电消除器离子风棒SIB7-360青岛平山郭-158-54210565
产品详情
SUNJE禅才静电消除器离子风棒SIB7-360青岛平山郭-158-54210565
SUNJE禅才静电消除器离子风棒SIB7-360青岛平山郭-158-54210565
SUNJE禅才静电消除器离子风棒SIB7-360青岛平山郭-158-54210565
Key Features
Reduces corona discharge losses to improve ion generation
The ion generation rate can be set by the user
Convenient management by minimizing wear and contamination of the discharge needle
One-Touch method for easy discharging needle replacement and cleaning
All-in-one controller that can be used without purchasing a separate controller
Alarm function in case of abnormal high voltage
Input voltage can be adjusted according to the installation environment (Controller: SBP-07A2 when used)
| Parameter | Description / Value | |
|---|---|---|
| Input Power | DC 24V (±5%) | |
| Power Consumption | Max. 7.8W | |
| Current Consumption | Max. 325mA (DC 24V) | |
| Ion-Generation Method | Corona Discharge Pulse AC | |
| Air Purge Supply Pressure | 0.1 ~ 0.5MPa (CDA, N2) | |
| Air Purge Connection Port | Pipe Thread 1/8″ | |
| Ion Balance | With in ±30V (1,000mm) | |
| Ozone(O3) Concentration | ≤0.05ppm | |
| Main Body Material | Non-Flammable ABS (Level V0) | |
| Electrode Material | Standard | Tungsten |
| Option | Silicon / Titanium | |
| Electrode Replacement | Cartridge type | |
| Operation Circumstance | 0℃~+50℃(32℉~122℉), 35%~85% RH | |
| Mounting Method | Bolt Mounting with Bracket | |
| Function | Remote Control | |
| Adjust Function | Frequency [Hz] | 0.1, 0.3, 1, 3, 5, 8, 10, 20, 30, 50 |
| Duty Ratio [%] | 40 ~ 70 | |
| Voltage [Level] | 1 ~ 10 | |
| Alarm Function | High Voltage Abnormal Alarm | |
| Interface | Input : Remote | |
| Output : Run State, Alarm State | ||
| Operating Distance | 50 ~ 2,000mm | |
| Option | SBP-RD (DC Power Supply) | |
| Warranty | 1 year | |
¥1560.00
