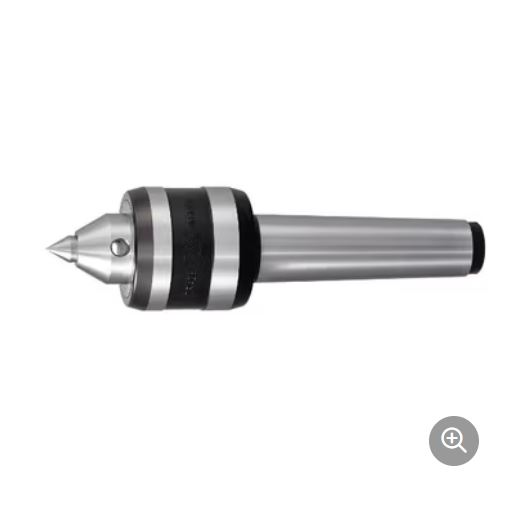

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

货号: #KS-4P

库存: 56

品牌:

¥6670.00 ¥4920.00

简介

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

分类: 五金工具类,

产品详情

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

KABUTO圆柱抛光机顶针顶尖KS-4P青岛平山郭-158-54210565

See page HEAD LIST for center head types.
See page ALLOWABLE LOAD & MORSE TAPAR for revolutions per minute.
The difference between types S and P is their waggle accuracy.
We recommend that type KFL be used for fine machining or light metal working.
Types S and P have the same dimensions.
Type KS comes with the center head A and then the center head ejecting drift DHN-1
(KS-5S and P come with the center head 5A60° and DHN-2).

MODEL TYPE	M.T.	φD	φd	φh	A	B	C	E	F	L	HEAD TYPE	WEIGHT (g)
KS-2Sor2P	No.2	37	27	15.5	36.2	30	68	4	22.5	134.2	REPLACEMENT	500
KS-3Sor3P	No.3	44	30	16	36.2	42	85	4.5	22.5	163.2	REPLACEMENT	860
KS-4Sor4P	No.4	56	32	16	36.2	54	108	5.3	22.5	198.2	REPLACEMENT	1,700
KS-5Sor5P	No.5	73	52	26	60.5	66	136	6.3	38	262.5	REPLACEMENT	3,900

*Dimensions are subject to change for alteration without prior notice.

Hellermanntyton海尔曼太通AB300-W扎带黑色100pcs/包
¥181.00

Hellermanntyton海尔曼太通AB300-W扎带黑色100pcs/包

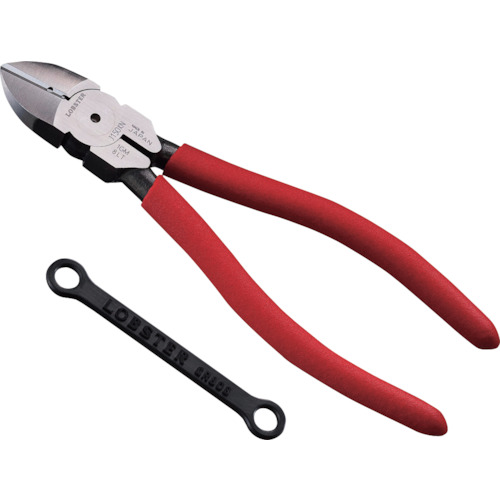

日本LOBTEX虾牌J150KNG斜口钳
